Register Pins

Ternes Burton™ register pins enable tight registration on multi color projects, mainly when using wood block or lino material or silk screening. Register pins are currently available in both metal and plastic. Both the stainless and the plastic pins are made with my trademarked base shape, which is unique to my company. They are designed with a narrow forward area to hold the button centered to prevent tilt, while the wide base has a hole in it so that as you tape the pin base down you have adhesion on either side as well as the center. This helps prevent movement.

My stainless pins are spot welded multiple times and are hand polished on both the top and bottom. The most common metal register pin I sell is the 1/4" x .085 R which has a 1/4" (6.35mm) diameter round button which is .085" high. Stainless pins are hand made one at a time and are priced accordingly. Available in limited quantities. Priced and sold individually, not as pairs. All heights listed are the button height only. Less money when purchased in Packages. Save money- buy plastic register pins.

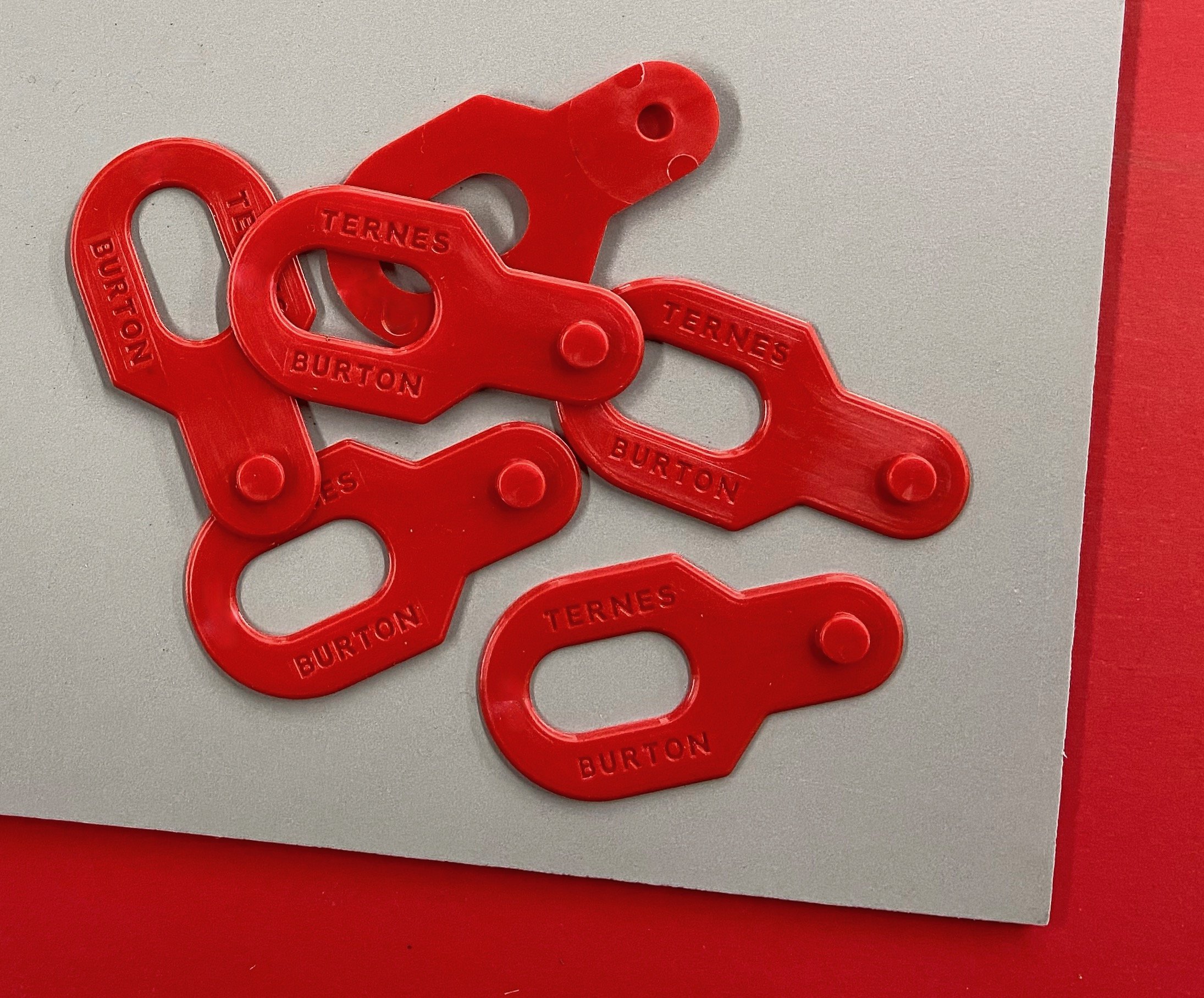

Plastic register pins are 1/5 the price of metal register pins, but are still meant for repeated use. They are a great choice for schools and students due to their low cost. To make them even more affordable they have price breaks at 50 and 100 pins in the pull down menu. They are available in two heights only- .065" (1.3mm) and .120" high. The overall thickness of the base plus button on the lower height of .065" is still less than the thickness of standard lino material. The plastic pins are recyclable, molded, and are meant for repeated use, however please watch your roller pressure with them. Priced and sold individually, not as pairs. All heights listed are the button height only.

To help you with your selection I have Packages available on the Packages webpage with a sensible combination of both stainless and plastic register pins and stripping tabs. Items in the Packages are less money than purchasing the items individually.

Having your project in register is important no matter how many colors you are working with. My register pins are meant to help you achieve the results you want. I look forward to providing you with the best registration pin on the market.

Due to limited metal quantities stainless register pin orders are currently limited to about 10 register pins. Very large orders for metal register pins might be cancelled. Any questions please email first. Thank you for your understanding.

1/4" Round (6.35mm)

plastic register pins

discontinued
